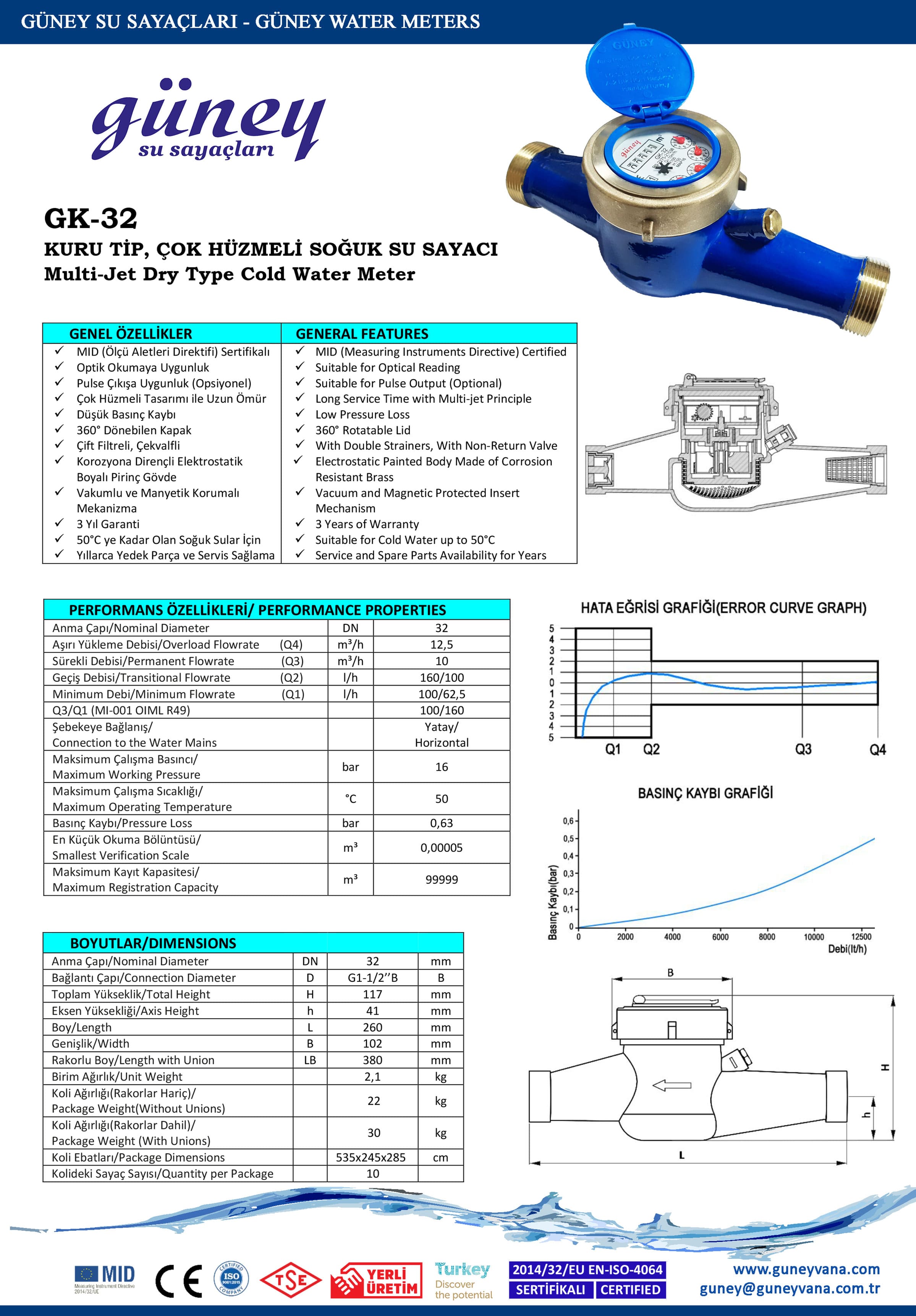

.jpg)
| Rated Diameter | DN | 32 | |||
| Overload Flow Rate (Q4) | m3/h | 12.5 | |||
| Timed Flow (Q3) | m3/h | 10 | |||
| Transition Flow Rate (Q2) | L/h | 160/100 | |||
| Minimum Flow (Q1) | L/h | 100/62.5 | |||
| Q3/Q1 (MI-001 OIML R49) | 100/160 | ||||
| Connecting to the Network | Horizontal | ||||
| Maximum Working Pressure | bar | 16 | |||
| Maximum Operating Temperature | ? | 50 | |||
| Pressureç Loss | bar | 0.63 | |||
| Smallest Reading Segment | m3 | 0.00005 | |||
| Maximum Recording Capacity | m3 | 99999 | |||
| Rated diameter | DN | 32 | mm |
| Connection structure | D | G1-1/2’’B | B |
| Total Height | H | 117 | mm |
| Axis Height | h | 41 | mm |
| Height | L | 260 | mm |
| Width | B | 102 | mm |
| Sleeve Length | LB | 380 | mm |
| Unit Weight | 2.1 | kg | |
| Box Weight (Excluding Fittings) | 22 | kg | |
| Box Weight (Including Fittings) | 30 | kg | |
| Package Dimensions | 535x245x285 | cm | |
| Counter in Boxç Number | 10 |
